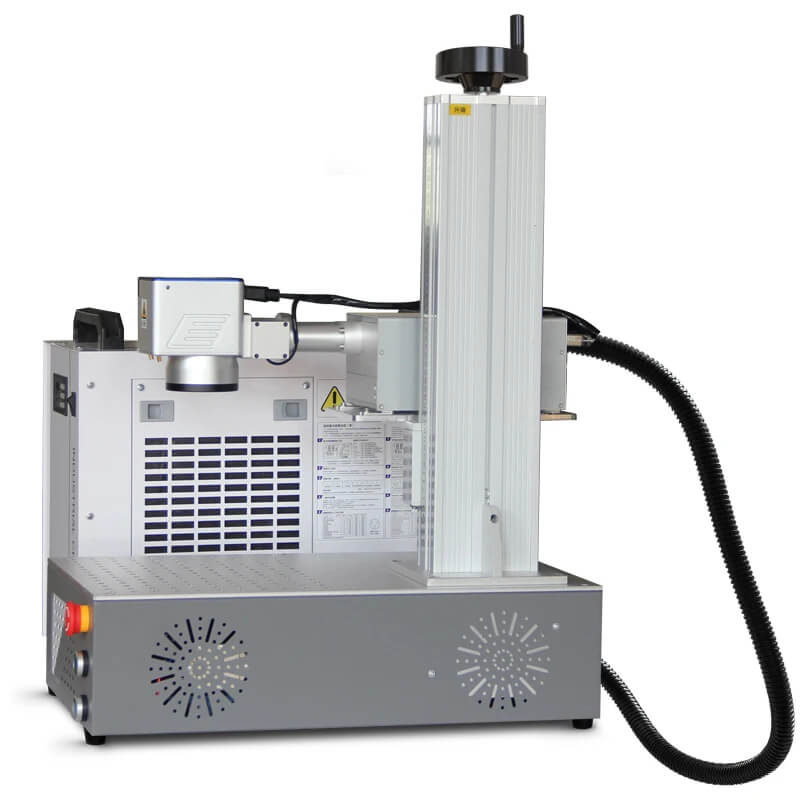

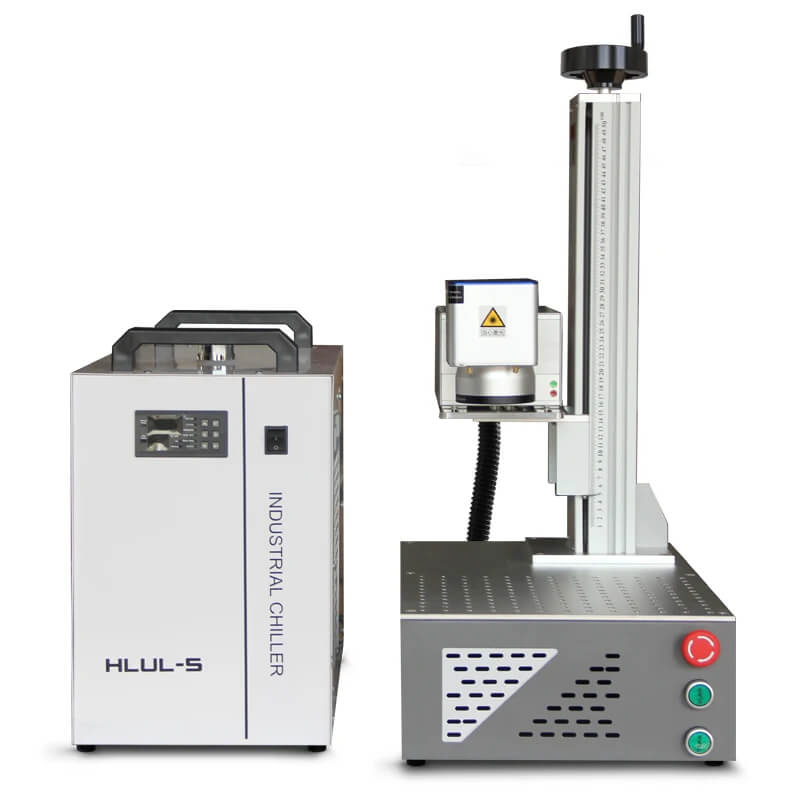

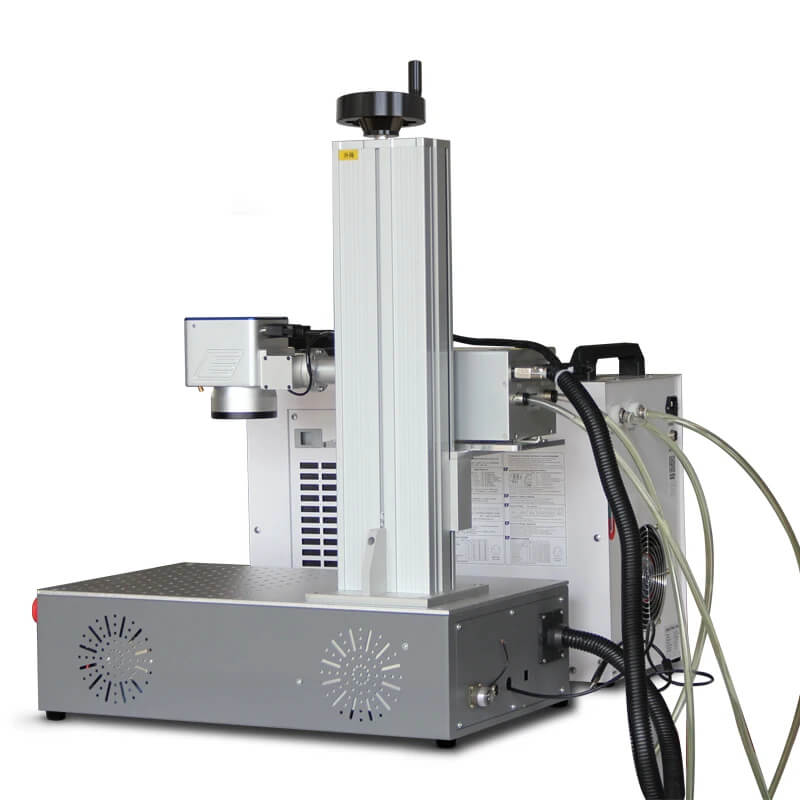

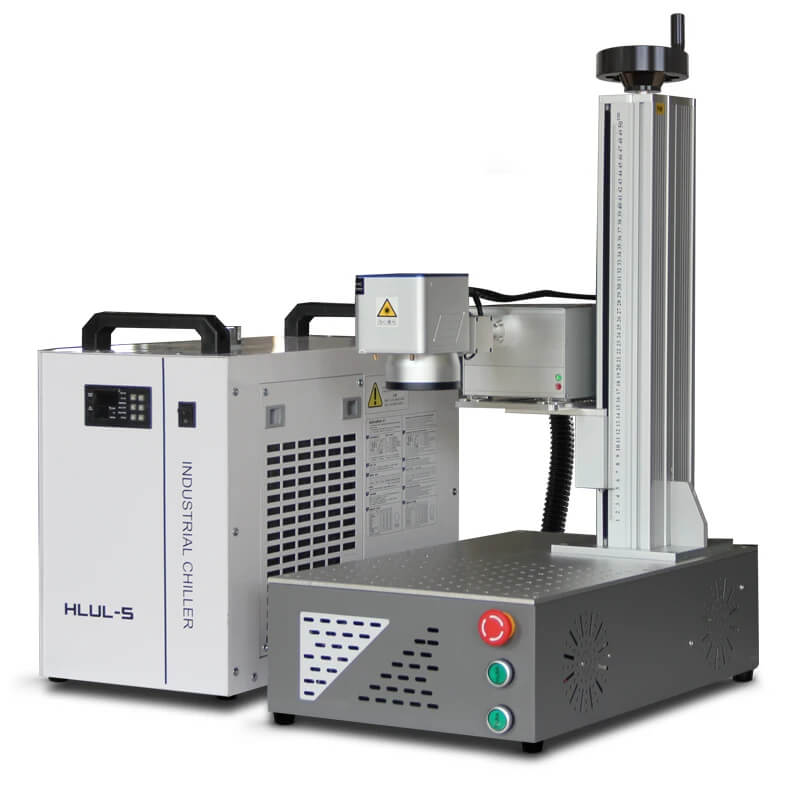

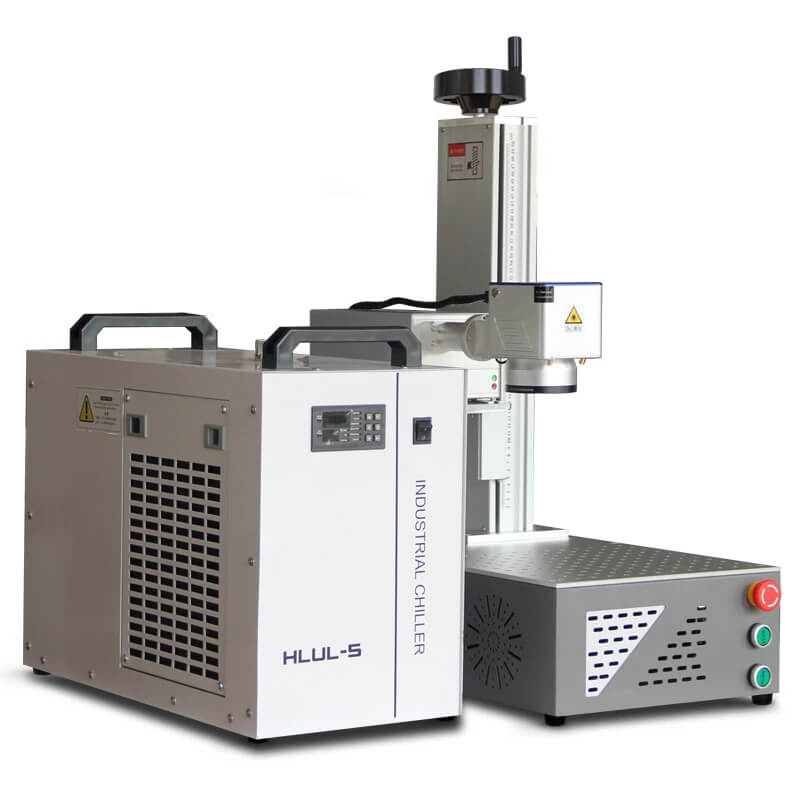

KETAI PulseX UV Laser Marking Machine 5W

Description

Laser Type: UV Laser (355nm)
Laser Power: Pulse X 5W
Working Area: 110 × 110mm
Galvanometer Scanner: SINO-GALVO RC1001
Lens: CSDQ
Control Board: BJJCZ LV7
Software: EZCAD 2.14.16
Working Speed: Up to 6000mm/s
Minimum Character Size: 0.1 × 0.1mm
Minimum Line Width: 0.013mm
Engraving Depth: 0.01–0.2mm (material dependent)
Spot Roundness: More than 90%
Power Stability: Less than 3%
Pulse Width: 12ns
Repetition Frequency: 10–200kHz
Laser Mode: TEM00
Beam Quality: M² less than 1.2
Beam Diameter: 0.7mm
Beam Divergence Angle: Less than 2mrad
Polarization Ratio: More than 100:1
Polarization Direction: Horizontal Direction
Cooling System: Water Cooling
Package Dimensions: 70 × 80 × 90cm
Gross Weight: 90KG
Warranty: 2 Years
