Description

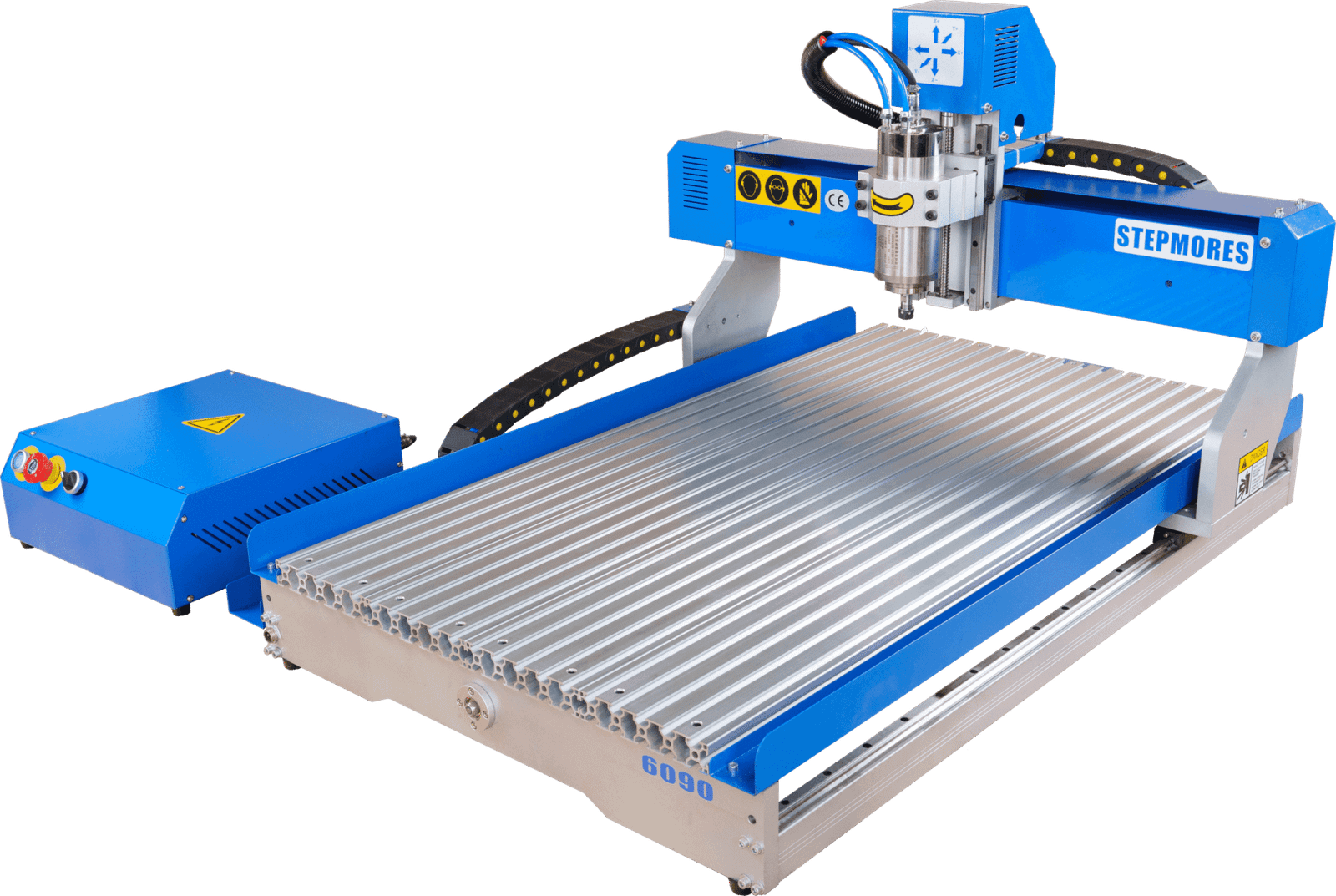

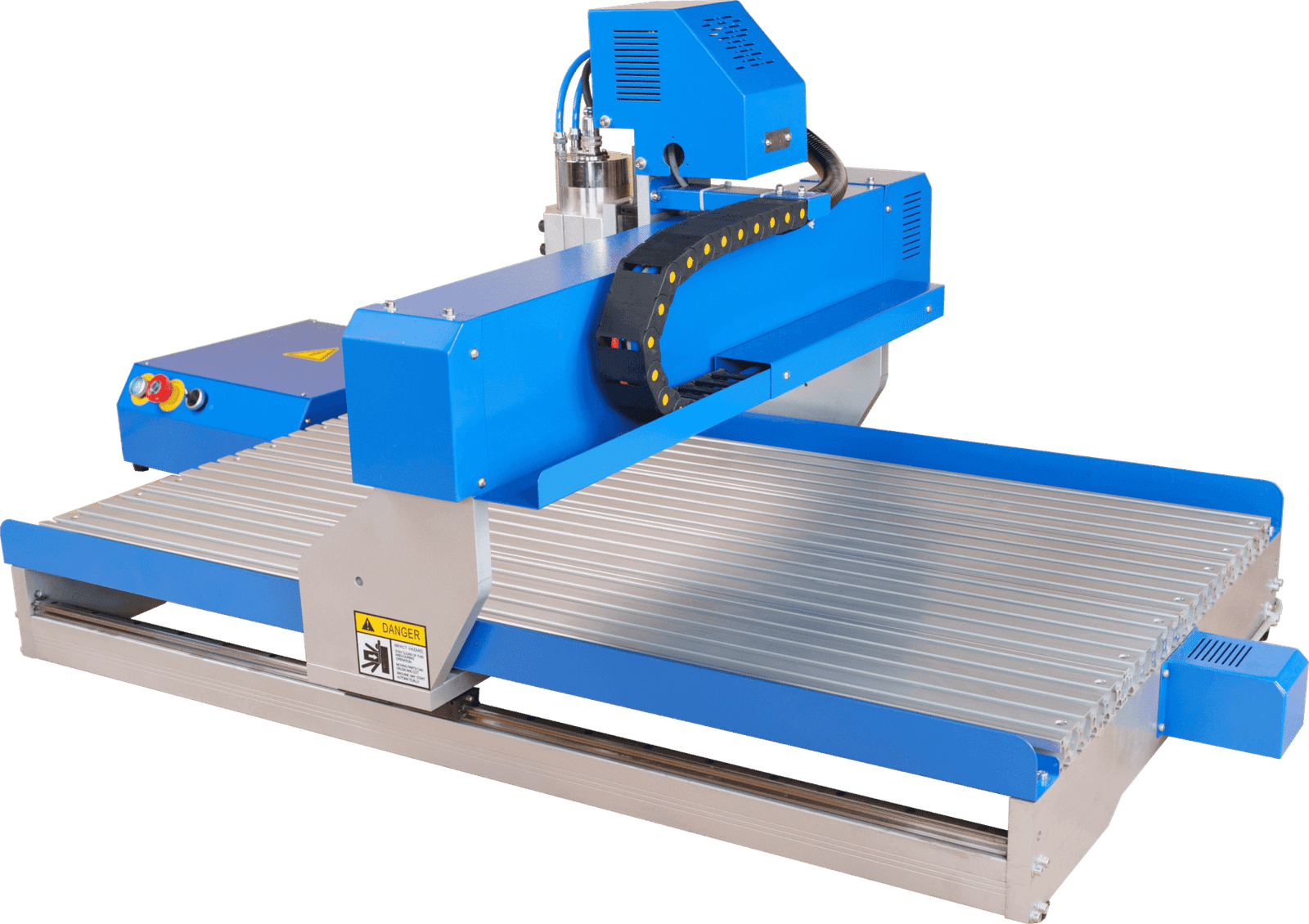

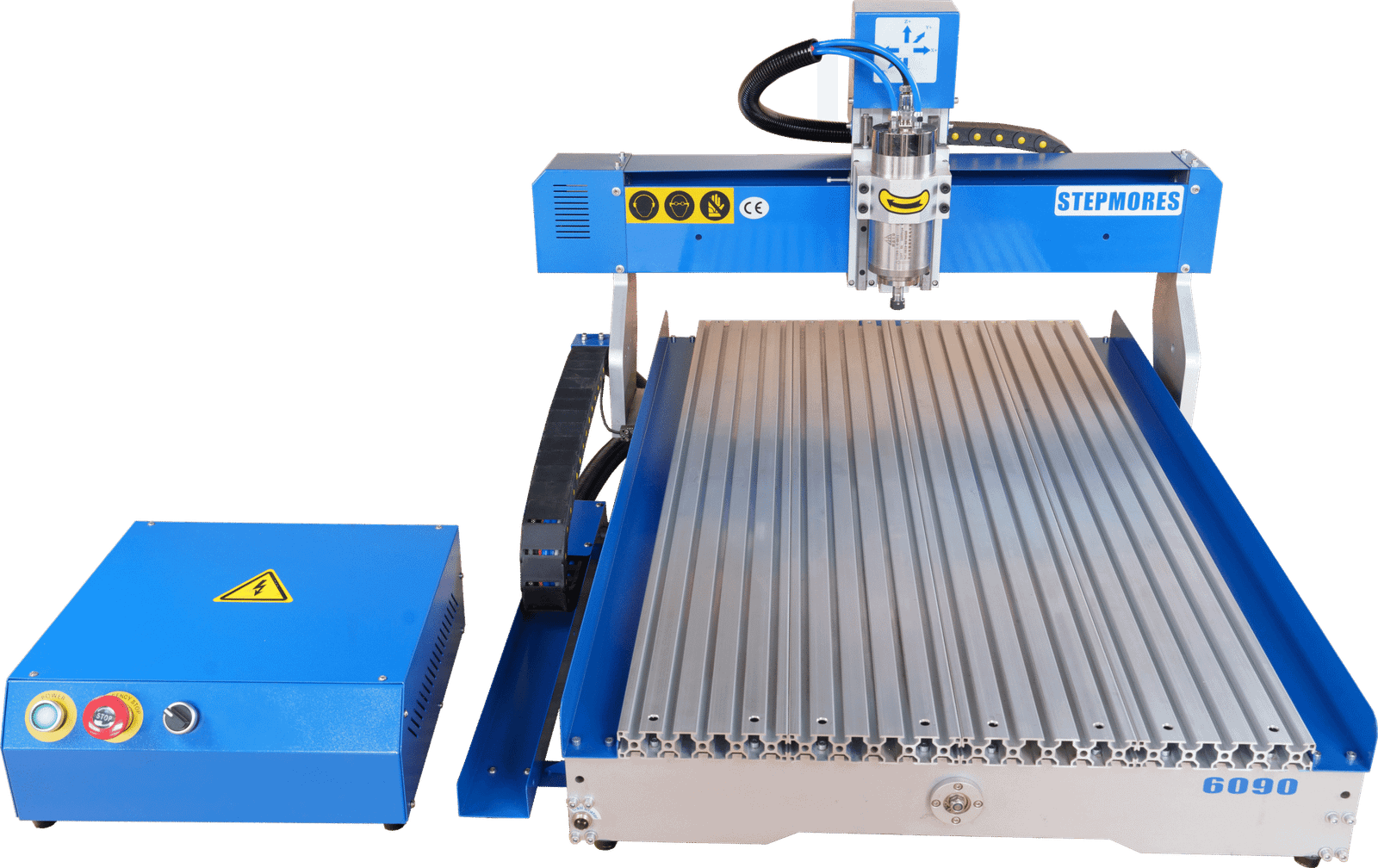

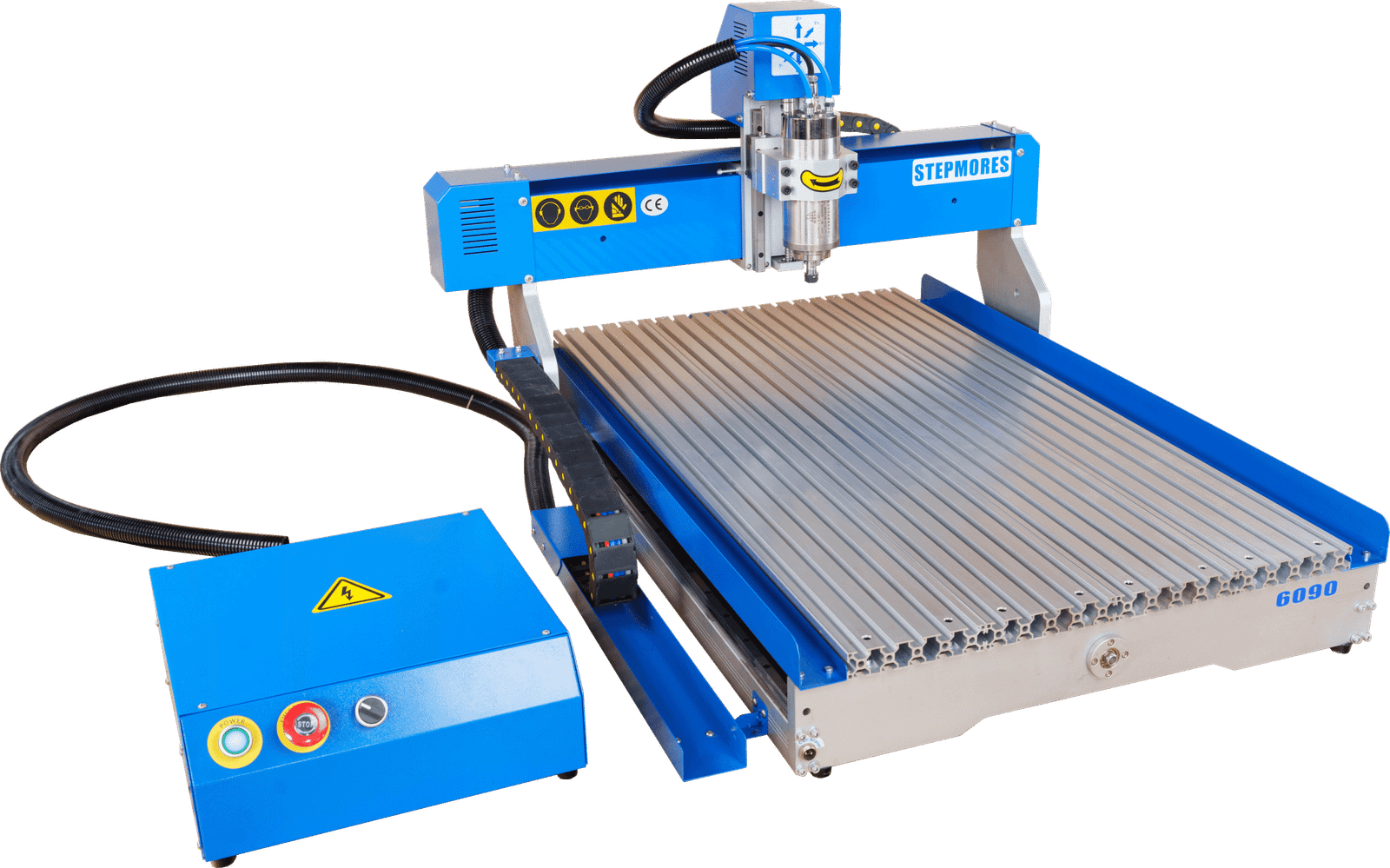

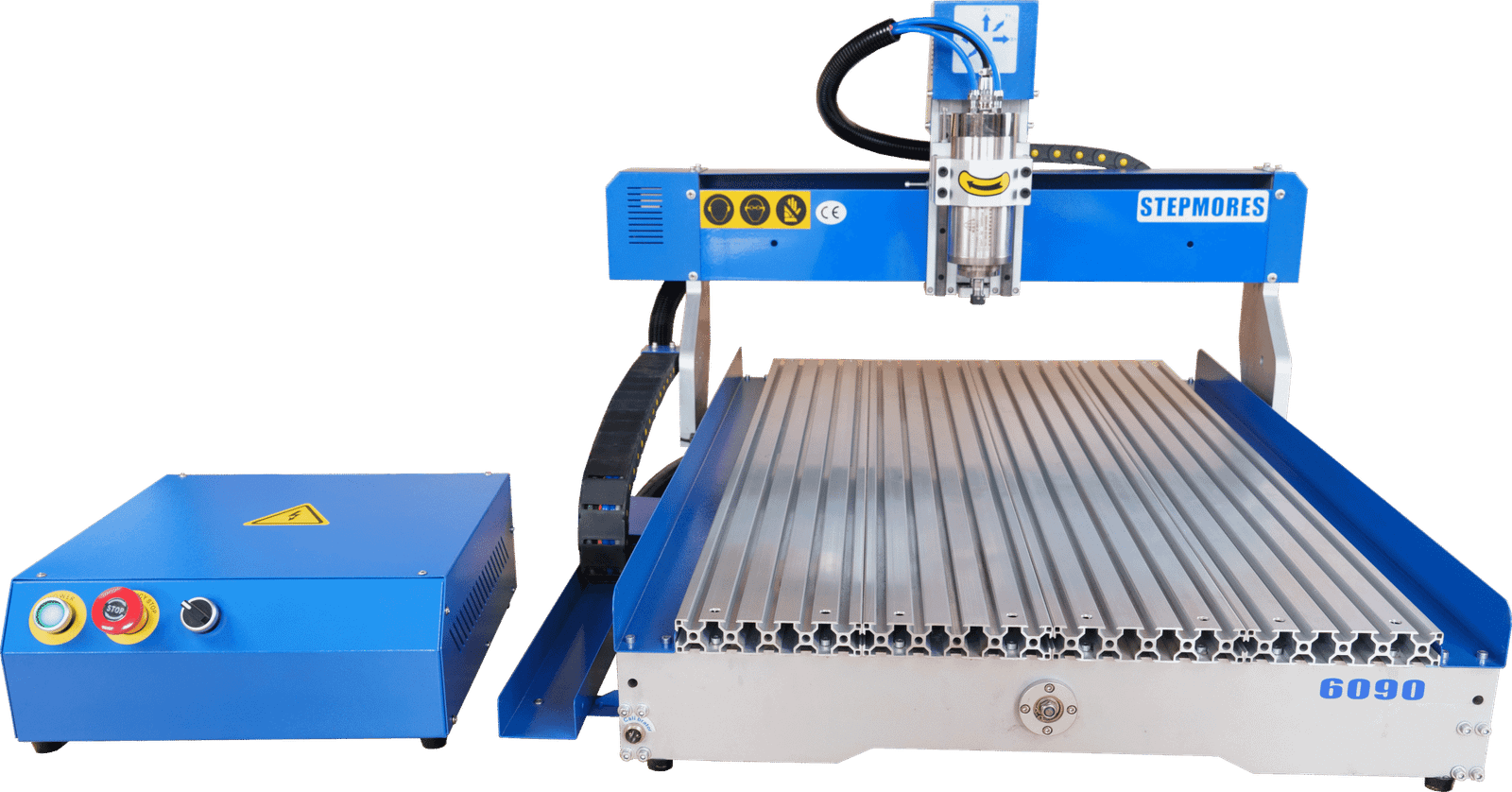

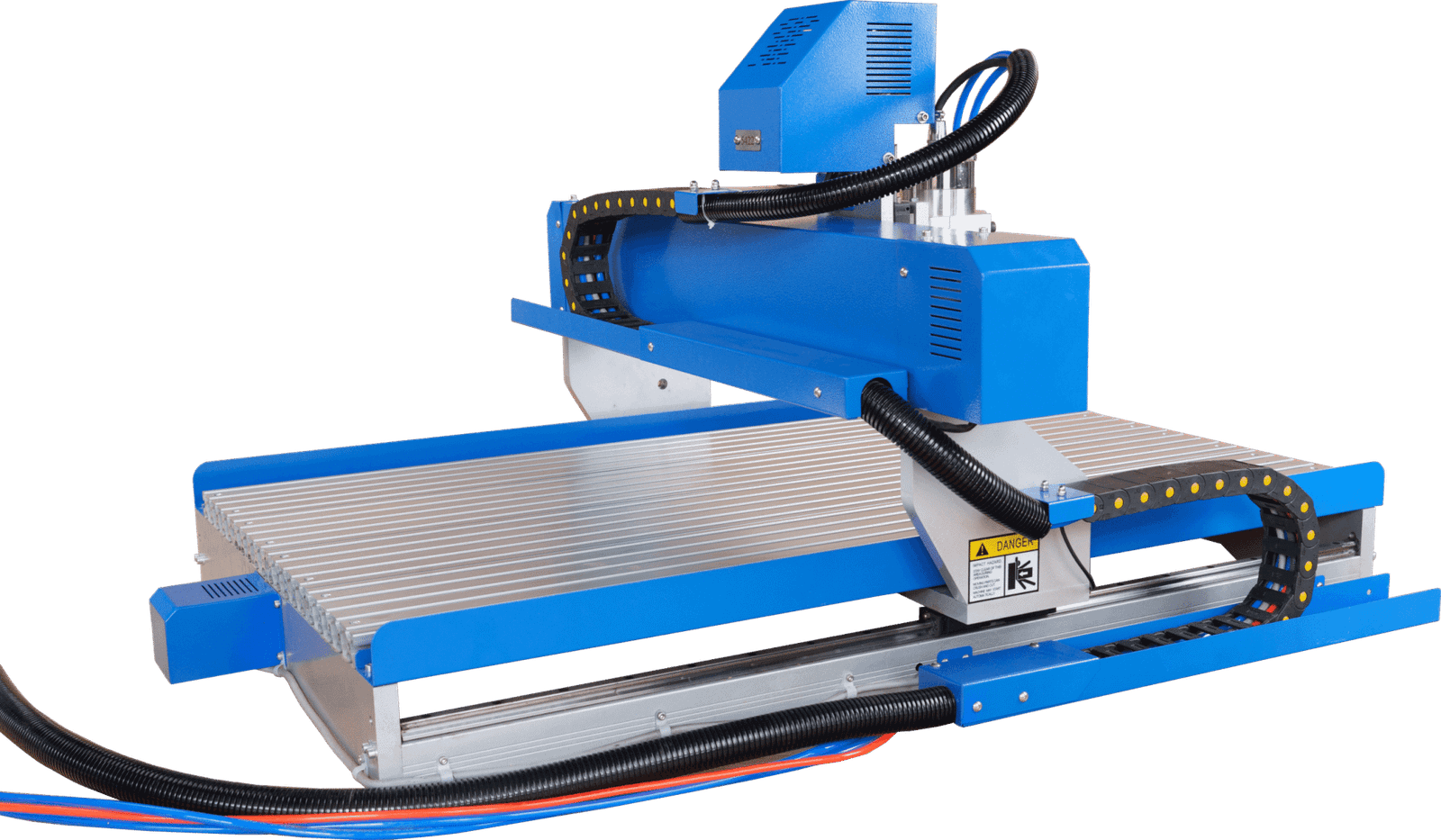

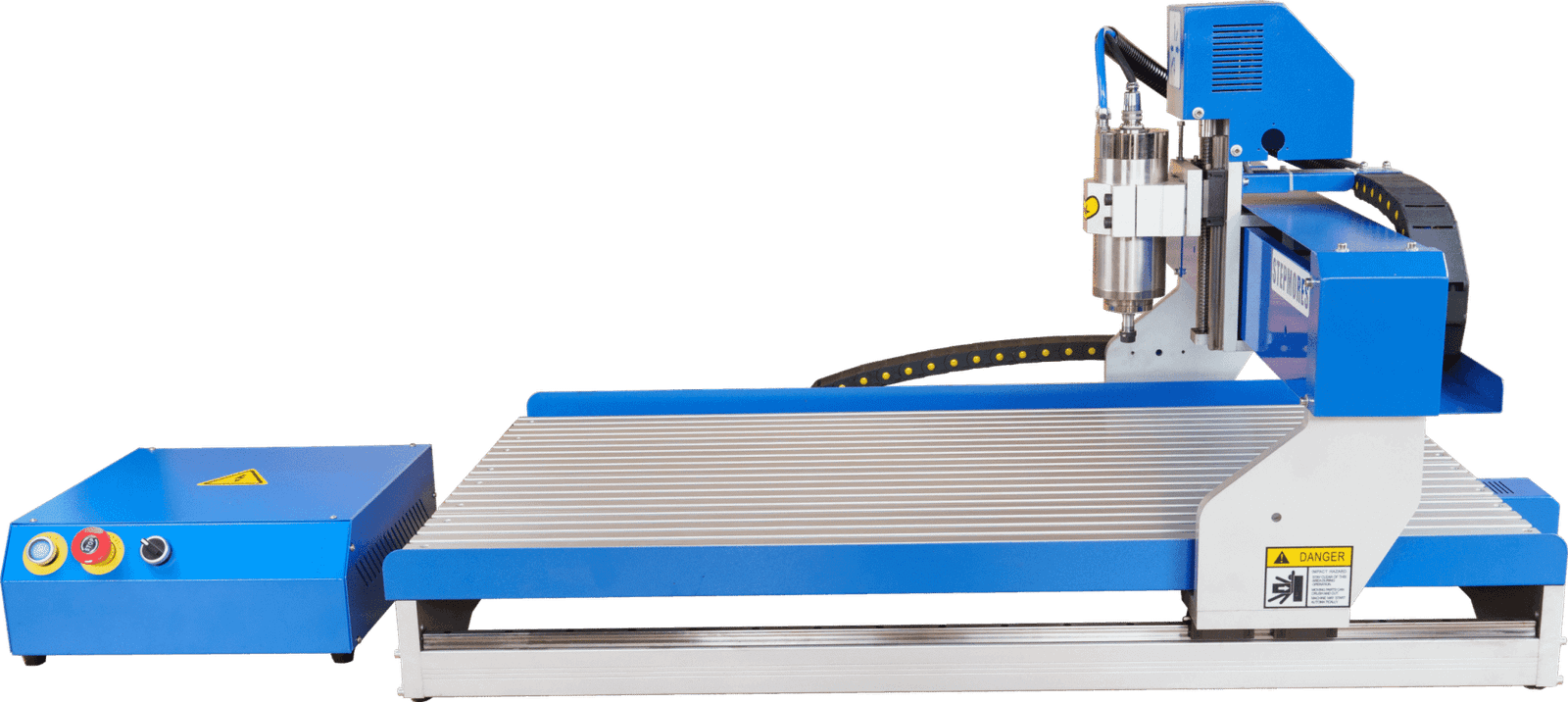

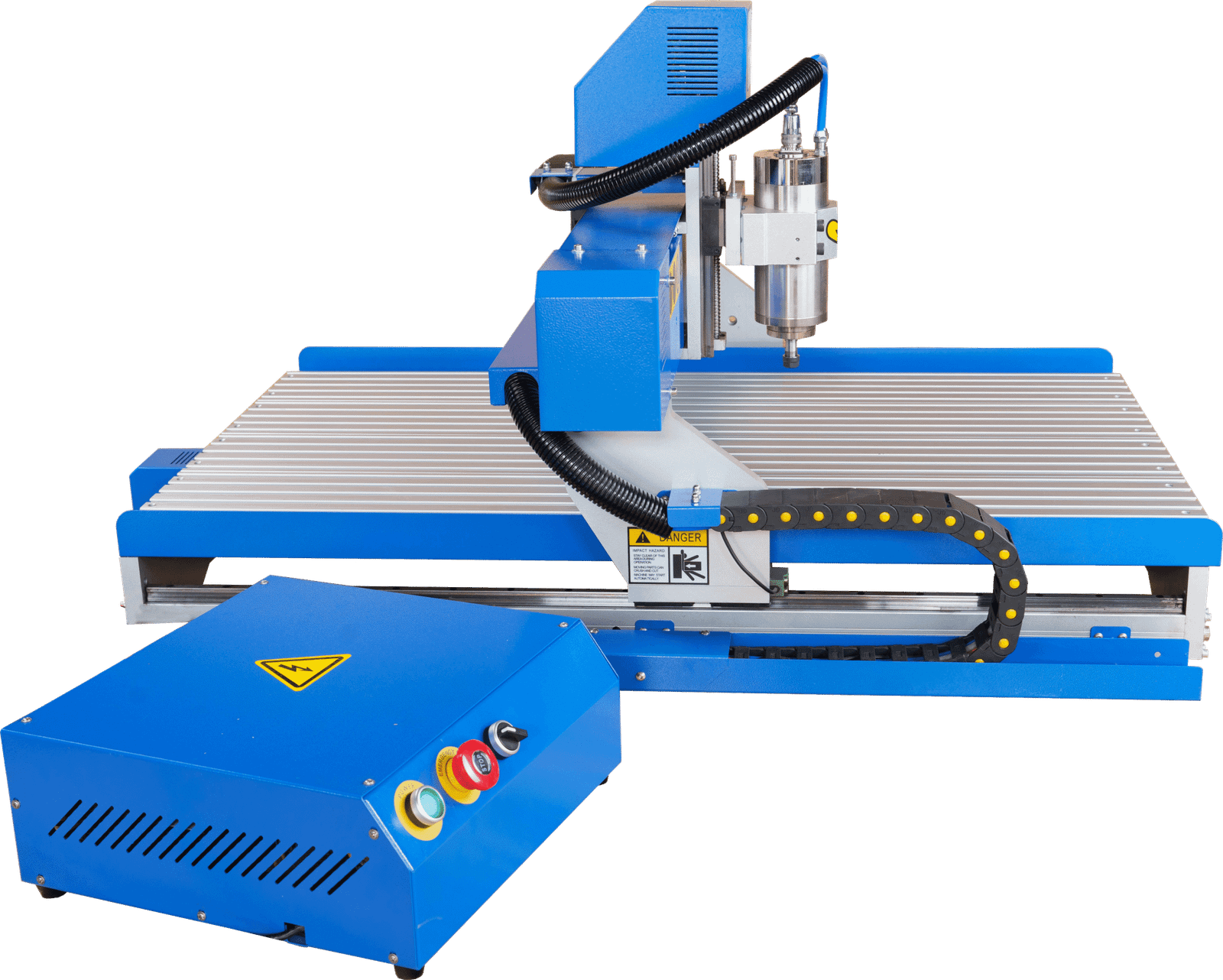

XYZ CNC Router Machine
- X, Y, Z Axis Travel: 600 × 900 × 140 mm
- Feeding Height: 150 mm
- Table Size: 600 × 1120 mm
- Spindle Power: 1.5 kW, water-cooled
- Spindle Speed: 0–24,000 RPM
- Rail Type: Square linear rails
- Control System: PC-controlled CNC system
- Drive System: Stepper motors
- Transmission: Ball screws
- Table Type: Aluminium T-slot profile table with clamping
- Maximum Travel Speed: 6,000 mm/min
- Working Precision: 0.05 mm
- Power Supply: AC 220V/110V, 50/60 Hz
- Compatible Software: Aspire, ArtCAM, Fusion 360, Mastercam, and other compatible software
- Command Format: G-code
- Machine Dimensions: 920 × 1224 × 650 mm
- Packaging Dimensions: 1060 × 1260 × 800 mm
- Net Weight: 95 kg
- Gross Weight: 130 kg
