Description
| Processing Size | 600*900*200mm |
| Bracket | Thickened cast iron gantry, cast iron bracket |
| Bed frame | Machining center processing bed (heavy-duty bed),Independent control cabinet |

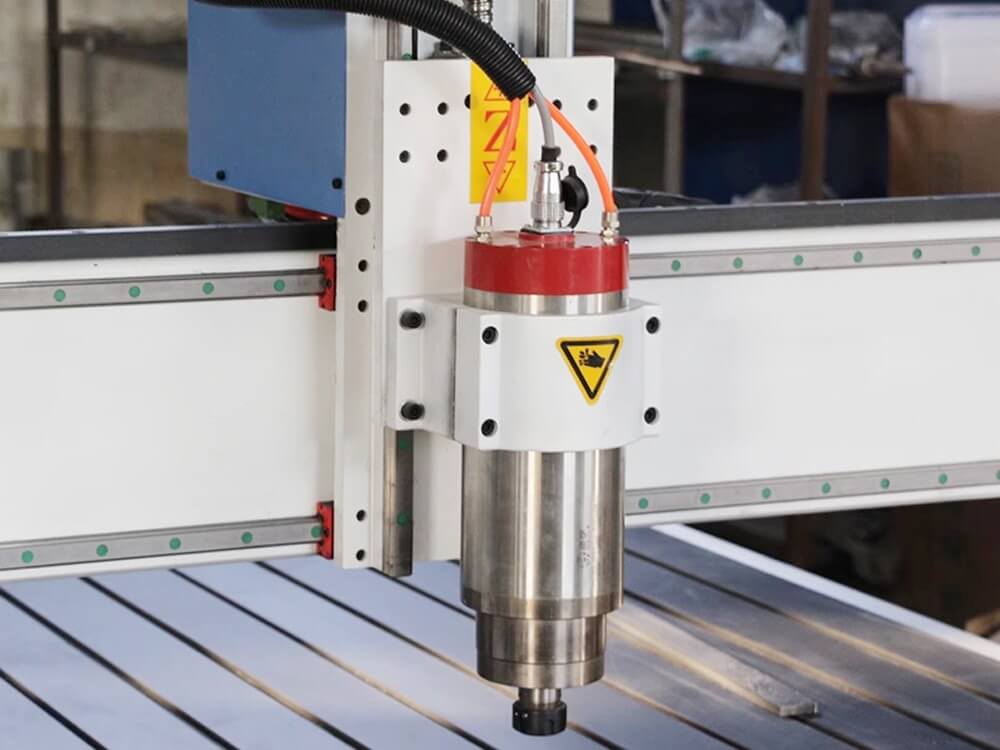

| Spindle power | 2.2KW high-speed water-cooled spindle |
| Drive mode | Stepper motor driver/yako/leadshine driver |
| Spindle speed | 6000-24000r/m |
| Mesa | Aluminum alloy T-slot countertop |
| Transmission mode | XY axis high-precision ground helical gear transmission + Z-axis high-precision TBI screw transmission |
| Slideway | Taiwan Hiwin High Precision 20 Straight Line Square Rail |
| Device cable | pure copper cable |
| Holdable tool shank diameter | 3.175mm,4mm,6mm,,12.7mm etc. |
| Control system | NCStudio v5.4.49 (supports resuming carving after power outage) |
| Lubrication system | Oil filling and maintenance system |
| Working voltage | AC380V/220V 50/60Hz |
| LCompatible software | Artcam, type3, CAD drawing, CDR, solidworks  UG  powermill, etc. |
| Engraving instructions | Standard G code, u00, mmg, plt |
| Security system | All photoelectric limits of XYZ three-axis |
| Locating Accuracy | ±0.02mm |
| Engraving precision | 0.01mm |
| Max woking speed | 12000mm/min |
| Locating Accuracy | Maximum idling speed |
| Machine size | 1300*1100*1350mm |
| Machine weight | 550kgs |
