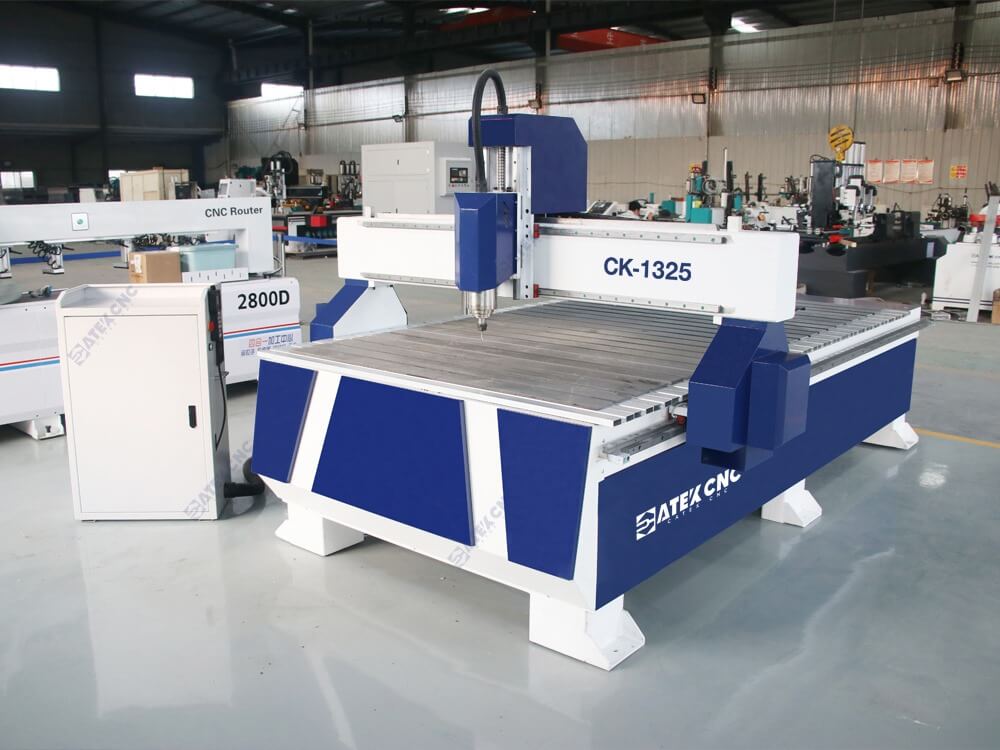

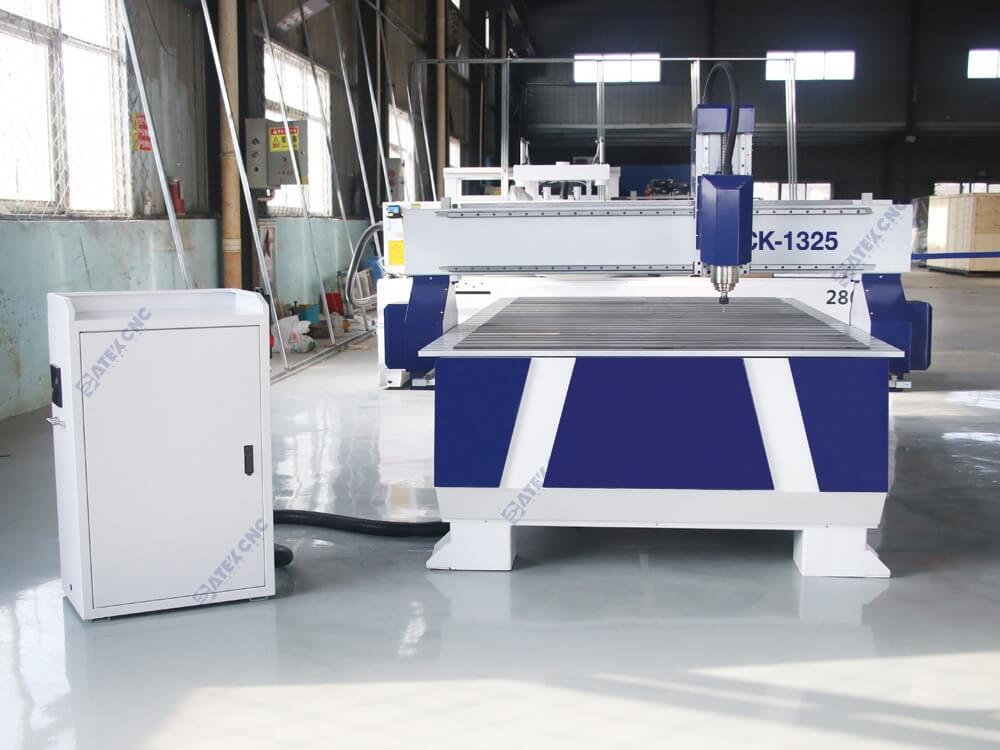

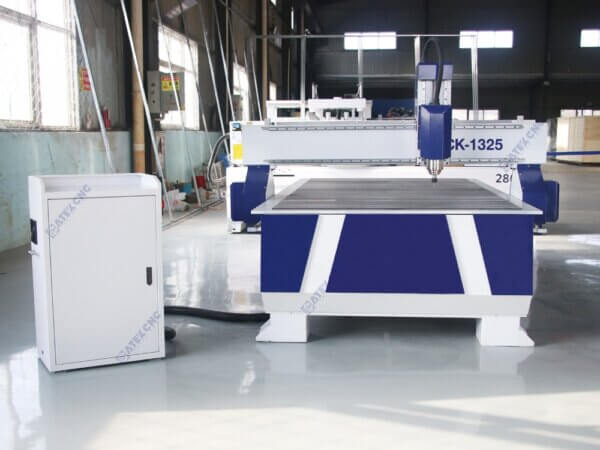

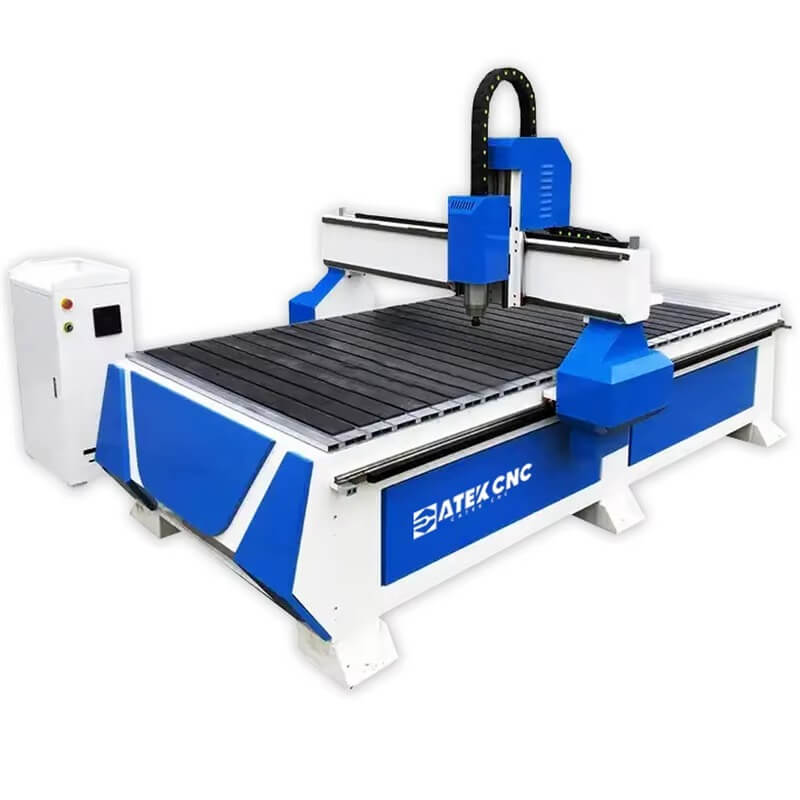

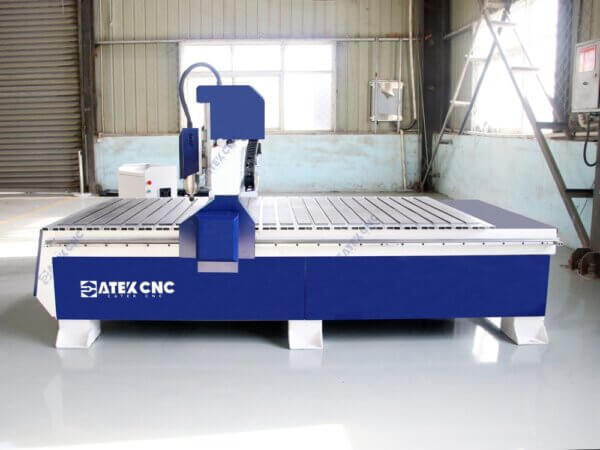

CATEK 1325 CNC Router Machine

₨370,000

3.5kw High-speed water-Cooled spindle

Processing size 1300*2500*200mm

Control System: NC Studio



Industrial-grade vacuum system for efficient dust extraction. Essential for clean operation when cutting wood, MDF, and plastic. Reduces wear on components and improves visibility and safety.
Applies uniform pressure to hold down material sheets during operation. Ideal for thin or warped materials to prevent shifting or vibration. Great for increased cutting precision and reduced material waste.
High-suction bed system that holds workpieces firmly in place without the need for clamps. Speeds up workflow, especially for repetitive production. Recommended for flat sheet materials.
Handheld digital controller for offline operation. Allows you to control the CNC machine without a computer. Includes file loading, jog control, and emergency stop functionality.
Powerful spindle suitable for wood, plastics, and light aluminum cutting. Water-cooled for silent, continuous operation. Great for medium-duty tasks.
Product total
Options total
Grand total
Category:

Description

  • XYZ working: stroke/processing size 1300*2500*200mm
  • Engraving instructions: Standard G code, u00, mmg, plt
  • Bracket Thickened cast iron gantry, cast iron bracket
  • Security system All photoelectric limits of XYZ three-axis
  • Bed frame Machining center processing bed (heavy-duty bed),
    Independent control cabinet
  • Control system NCStudio v5.4.49 (supports resuming carving
    after power outage)
  • Spindle power 3.5kw high-speed water-colded spindle
  • Engraving precision 0.01mm
  • Drive mode Stepper motor driver
  • Max woking speed 18000mm/min
  • Frequency converter Best frequency converter
  • Maximum idling speed 25000mm/min
  • Spindle speed 6000-24000r/m
  • Machine size/weight 3100*2100*1800/1400kg
  • Mesa Aluminum alloy T-slot countertop Locating Accuracy ±0.02mm
  • Lubrication system Oil filling and maintenance system
  • Compatible software Artcam, type3, CAD drawing, CDR,
    solidworks, UG powermill, etc.
  • Slide way :Taiwan Hiwin High Precision 25 Straight Line Square Rail
  • Working voltage AC380V/220V 50/60Hz
  • Device cable pure copper cable
